NOTE
Before setting up, please read and understand the safety information and familiarize yourself with the full preparation.

1 PDF Guide

Download the PDF Set-UP Guide if you prefer a handy printout.

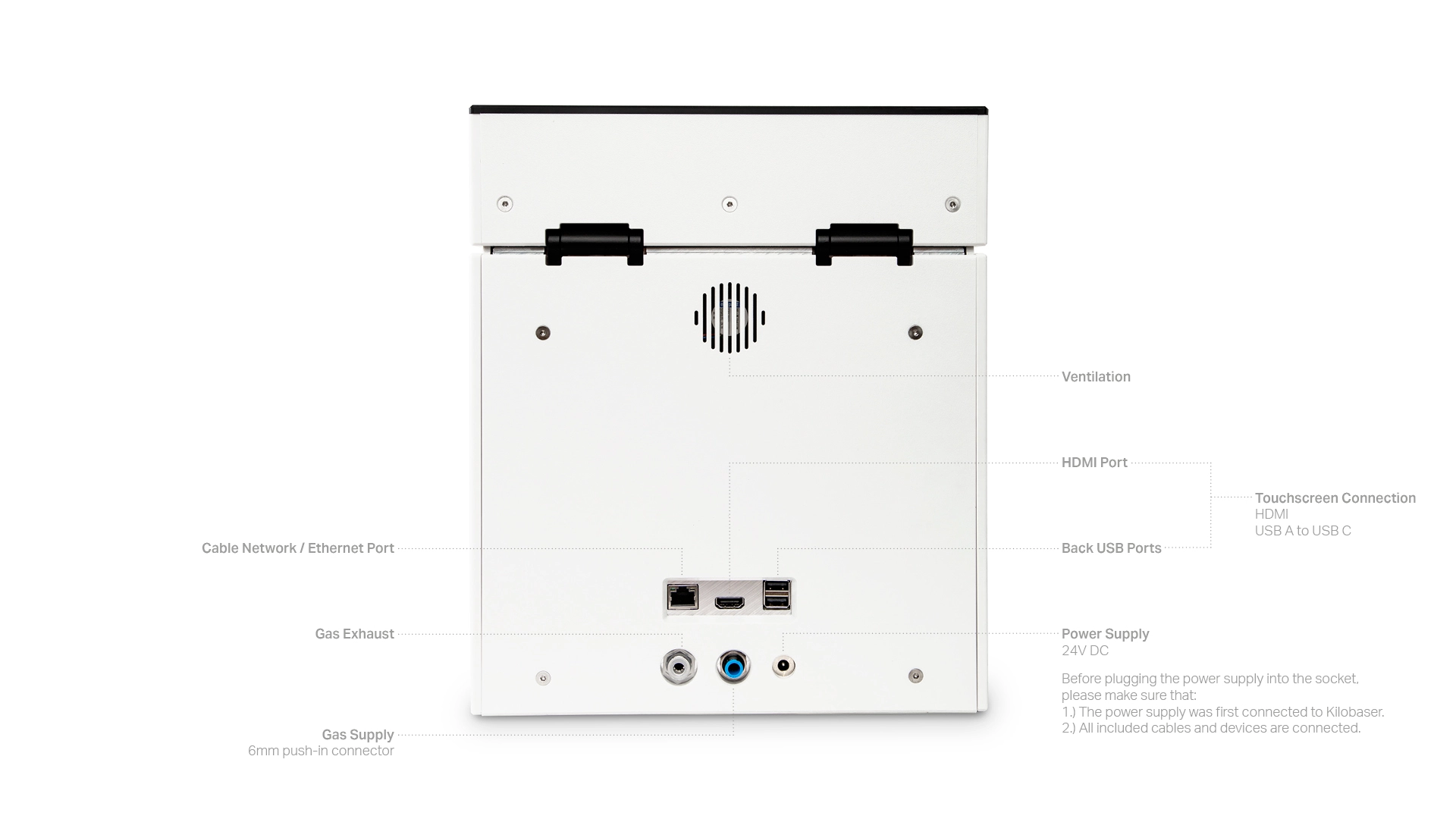

2 Connecting your Kilobaser

Setting up your Kilobaser is easy.

You need:

• included power supply
• included touchscreen display
  • with included HDMI to mini-HDMI cable
  • with included USB-C to USB-A cable
• gas supply (not included)
• (optional) included WiFi or Ethernet cable (not included) if you require a network connection for a remote web interface

CAUTION
Make sure to:
1) First connect the power supply to the Kilobaser device,
2) only then plug the power supply into the mains socket.

3 Switching On

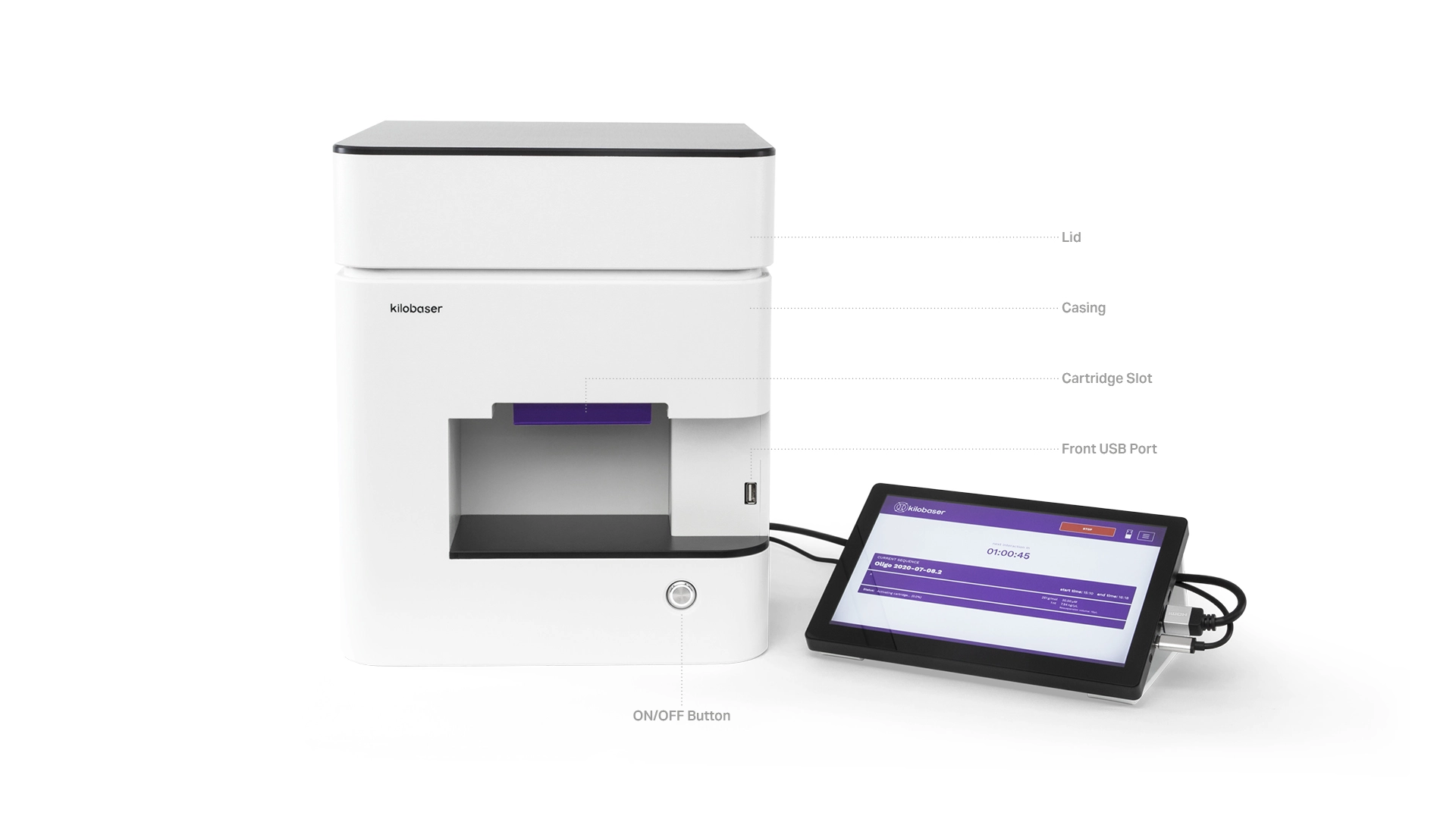

Simply press the ON/OFF button and wait until the device has booted successfully.

Now you can start synthesizing oligonucleotides.

To switch Kilobaser off, press the ON/OFF button and wait until the blinking of the LED stops.
