1 Set-Up Instructions

1.1 List of contained parts

  • Kilobaser NitroPro Go Device
  • Power Supply
  • 2 meters tube (6mm OD, blue)

1.2 Unpackaging

  • Open the box.
  • Verify all parts are in good order.
  • Make sure to put the generator on a stable and slip-resistant surface. Be aware that the generator will vibrate during operation, which may cause unwanted movement.

1.3 Connections

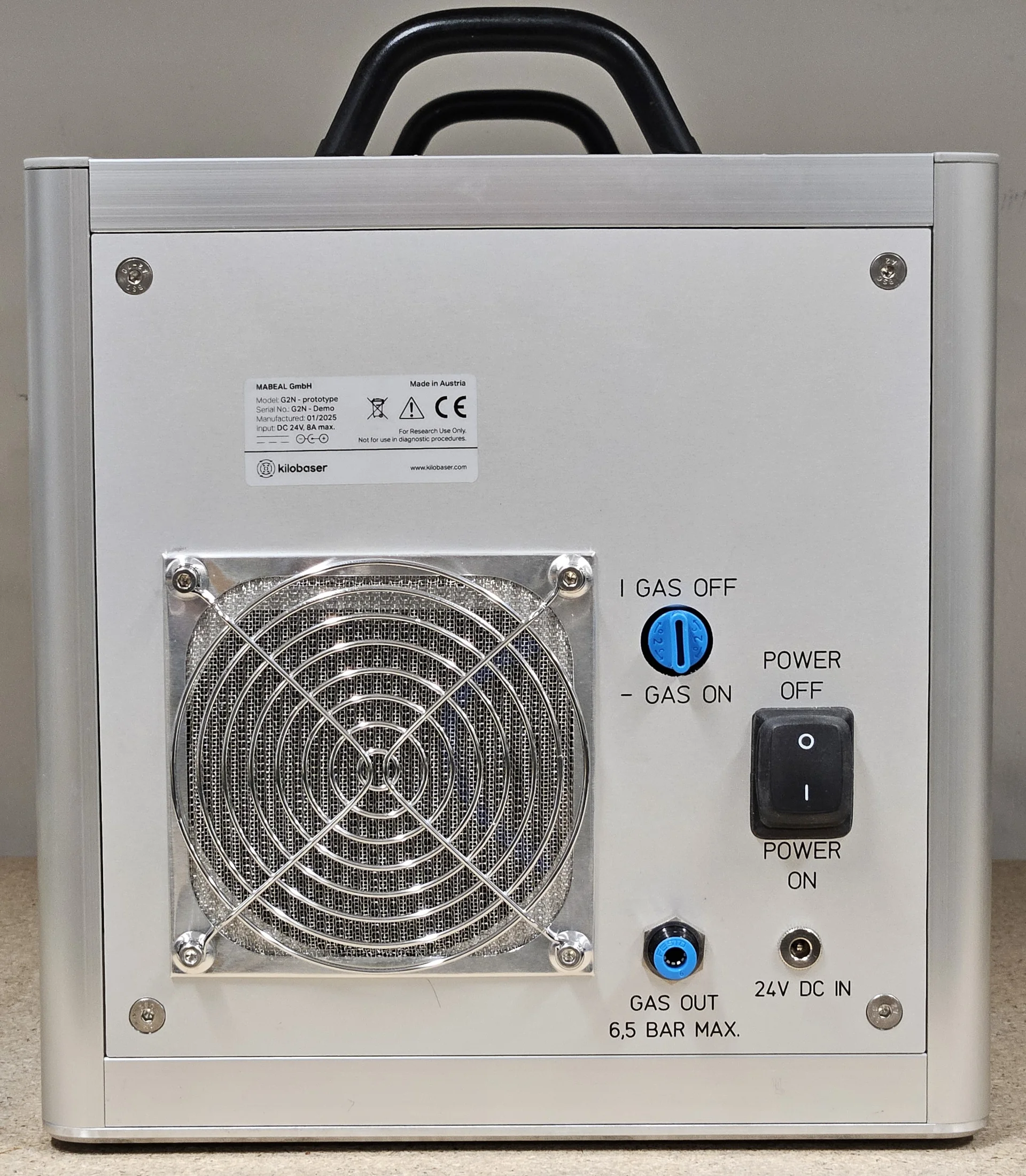

kilobaser_nitropro_go.jpg Picture 1

  1. Make sure that the POWER ON / OFF switch is in the POWER OFF position. (see Picture 1)
  2. Plug in the 24V / 8A power supply at 24V 8A IN. Make sure that you use the power supply which is marked with Nitrogen Pro Go.
  3. Attach a 6mm blue tube to GAS OUT, preferably short tube, but of course long enough to connect to your Kilobaser ONE device. Don’t yet connect to your synthesizer to allow nitrogen gas to escape the system and dry it.
  4. Attach a 6mm blue tube to WATER OUT on the other side of the device and let it hang into a drain or container with an approximate volume of 1L. The system will release a couple milliliters of water every time the internal water filter is full. (see Picture 2)
